产品系列：NJM842G
代理品牌：Nisshinbo日清纺微电子

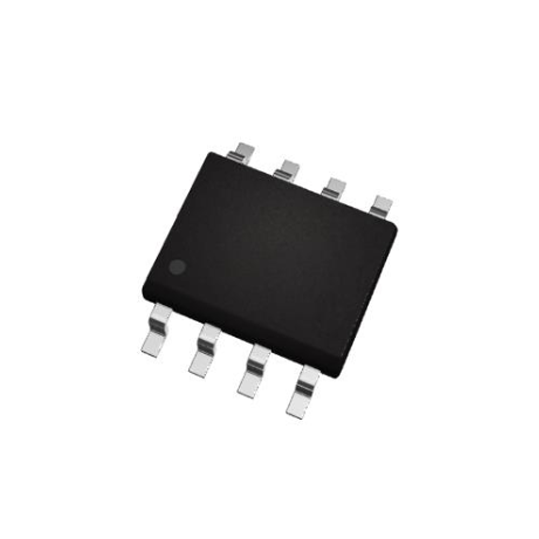

产品封装：SOP8封装
交期时间：现货一般当天发货，预订需电话详情.
发货货仓：深圳、香港、苏州
热门标签：输出运算放大器，放大器芯片
咨询热线：0755-83322522 在线咨询
NJM842G(TE2）运算放大器芯片
全新包装/正品保证/进口品牌/售后无忧/预订详谈
现货推荐
recommended
联系电话
recommended
联系人：商务接待
电 话：0755-8332 2522
传 真：0755-8364 8400
地 址：深圳市福田区彩田南路2010号中深花园A座六层608（岗厦地铁站E出口）
产品概况
产品特点
相关下载
概述
NJM842/NJM844 分别为双通道、四通道单电源高速运算放大器，具备低失调电压、低温漂、8.5V/μs 高压摆率、3.6MHz 增益带宽积等优异性能，非常适用于逆变器、电机驱动回路电流检测、高速有源滤波器等对高速宽带性能有要求的各类场景。
器件支持宽工作电压范围：单电源 3V～36V，双电源 ±1.5V～±18V；工作温度区间覆盖 -40℃～+125℃，可大量应用于电源设备、电机控制器、逆变器等各类工业设备。
Overview
The NJM842 and NJM844 are single-supply high-speed operational amplifiers with 2 and 4 circuits respectively. They feature excellent characteristics including low offset voltage, low temperature drift, high slew rate of 8.5 V/μs and 3.6 MHz gain bandwidth product, making them ideal for a wide range of applications requiring high speed and wide bandwidth, such as current sensing in inverter and motor drive circuits, high-speed active filters.
With a wide operating voltage range (single supply: +3 V to +36 V; dual supply: ±1.5 V to ±18 V) and an extended operating temperature range from -40 ℃ to +125 ℃, these devices are widely adopted in industrial equipment including power supply units, motor control units and inverters.
应用
电机、逆变器电流检测应用
Motor, Inverter Current Sense Application
电源应用
Power Supply Application
缓冲放大器（缓冲运放应用电路）
Buffer Application Amplifier
有源滤波器
Active filter
