可穿戴生物传感器推荐选型方案

发布时间:2024-04-29    栏目行业:产品知识    浏览次数:

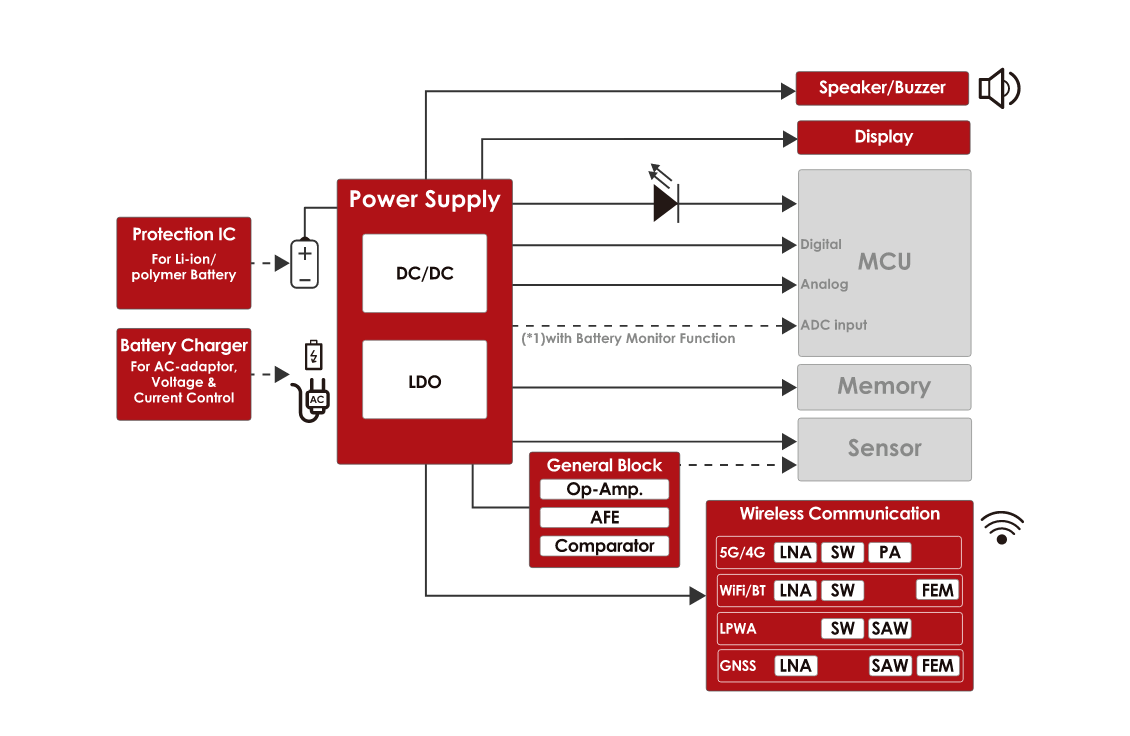

可穿戴生物传感器

DC/DC

TypesProductFeatures
Buck, Low VoltageRP5110.3µA IQ Low Quiescent Current 100mA Buck DC/DC Converter with Synchronous Rectifier
Buck, Low VoltageRP5120.3µA IQ Low Quiescent Current 300mA Buck DC/DC Converter with Synchronous Rectifier
Buck, Low VoltageRP515Low Power Consumption 300mA Buck DC/DC Converter with Battery Monitor
Buck, Low VoltageRP5170.3V Low Output Voltage Low Quiescent Current 300mA Buck DC/DC Converter
Buck, Low VoltageRM5170.3V Ultra-low Output Voltage 300mA Buck DC/DC Module with Inductor
Buck, Low VoltageRP504600mA PWM/VFM Step-down DC/DC Converter with Synchronous Rectifier
Buck, Low VoltageRP5051A PWM/VFM Step-down DC/DC Converter with Synchronous Rectifier
Buck, Low VoltageRP507600mA PWM/VFM Step-down DC/DC Converter with Synchronous Rectifier
Buck, Low VoltageRP508600mA 6MHz PWM/VFM Step-down DC/DC Converter with Synchronous Rectifier
Buck, Low VoltageRP5090.5A/1A 6MHz PWM/VFM Step-down DC/DC Converter with Synchronous Rectifier
Buck, Low VoltageRM590400mA Synchronous Step-down DC/DC Module with MODE pin and Inductor
Boost, Low VoltageRP402PWM/VFM Step-up DC/DC Converter with Synchronous Rectifier
Buck-boostRP6040.3µA IQ Low Quiescent Current 300mA Buck-Boost DC/DC Converter with Synchronous Rectifier
Buck-boostRP605(*1)Low Power Consumption 300mA Buck-Boost DC/DC Converter with Battery Monitor
Buck, Energy HarvesterR1800144 nA Low Quiescent Current Buck DC/DC Converter for Energy Harvester
Buck, Energy HarvesterR1801Buck DC/DC Converter for Energy Harvester with Adjustable Maximum Power Point Control, Adjustable Output Voltage and PG Function
Boost, Energy HarvesterR1810600 nA Low Quiescent Current Boost DC/DC Converter for Energy Harvester

LDO

TypesProductFeatures
Under 10V, Low ConsumptionRP118100mA Low Supply Current 0.2µA LDO Regulator
Under 10V, Low ConsumptionRP124Low Supply Current 100mA LDO Regulator with Battery Monitor
Under 10V, Low ConsumptionNR1620
(Under Development)
Low Voltage, Ultra-Low Supply Current 150mA LDO Regulator
Under 10V, Low ConsumptionRP110Low Voltage Low Supply Current 150mA LDO Regulator
Under 10V, Low ConsumptionRP104Low Supply Current 150mA LDO Regulator
Under 10V, Low ConsumptionR1180Low Supply Current 150mA Voltage Regulator
Under 10V, Low ConsumptionRP200Manual/Automatic ECO Mode Shift Low Voltage 300mA LDO Regulator
Under 10V, Low ConsumptionRP201Manual/Automatic ECO Mode Shift Low Voltage 150mA LDO Regulator
Under 10V, Low ConsumptionRP202Automatic ECO Mode Shift Low Voltage 200mA LDO Regulator
Under 10V, Low ConsumptionRP173Low Supply Current 11V Input 150mA Voltage Regulator with Reverse Current Protection
Under 10V, Low NoiseNR16411A Equipped with Low Power Mode Ultra-Low Noise Low Dropout Voltage Regulator
Under 10V, Low NoiseRP122Low Noise and Low Supply Current 400mA LDO Regulator
Under 10V, Low NoiseRP123Low Noise and Low Supply Current 250mA LDO Regulator

Battery Charger

Charger

TypesProductFeatures
ChargerNJM2146Voltage and Current Control IC for battery charger
ChargerNJM2346Voltage and Current Control IC for battery charger
ChargerNJM2336Voltage and Current Control IC for battery charger
ChargerNJM2337Voltage and Current Control IC for battery charger

Protection IC

One-Cell

TypesProductFeatures
FET SenseNB71421-cell Li-ion Battery Protection IC with High-accuracy Overcurrent Detection
FET SenseNB71431-cell Li-ion Battery Protection IC with High-accuracy Overcurrent Detection
R SenseR56111-Cell Li-ion Battery Protection IC with High-accuracy Overcurrent Detection, Reset Signal
R SenseR56131-cell Li-ion Battery Protection IC with High-accuracy Overcurrent Detection and Selectable RESET Function
R SenseNB71401-cell Li-ion Battery Protection IC with Forced Standby and Built-In System Reset Function
R SenseNB71411-cell Li-ion Battery Protection IC with Forced Standby and Built-In Watchdog Timer
R Sense, High-sideR5449High-performance 1-Cell Li-ion Battery Protection IC with Built-in Driver for High-side Nch FETs and Temperature Protection
R Sense, High-sideR54451-Cell Li-ion Battery Protection IC with Built-in Driver for High-side Nch FETs and Temperature Protection
2nd ProtectionR54371-Cell to 3-Cell Li-ion Battery Second Protection IC

General Block

Op-Amp

TypesProductFeatures
SpecializedNJU770001ch. 1.5V, 0.23μA/ch, Ultra-Low Power, Excellent EMI Immunity, Rail-to-Rail Input/Output, CMOS Operational Amplifiers
SpecializedNJU770011ch. 1.5V, 0.23μA/ch, Ultra-Low Power, Excellent EMI Immunity, Rail-to-Rail Input/Output, CMOS Operational Amplifiers
SpecializedNJU770022ch. 1.5V, 0.23μA/ch, Ultra-Low Power, Excellent EMI Immunity, Rail-to-Rail Input/Output, CMOS Operational Amplifiers
SpecializedNJU770044ch. 1.5V, 0.23μA/ch, Ultra-Low Power, Excellent EMI Immunity, Rail-to-Rail Input/Output, CMOS Operational Amplifiers

AFE

TypesProductFeatures
PGA, Low ConsumptionNJU9101Low Power Analog Front End

Comparator

TypesProductFeatures
SpecializedNJU7116Super Low Operating Current and Low Offset Voltage Tiny Single C-MOS Comparator
SpecializedNJU77210
(Under Development)
1ch. Ultra Low Power, Excellent EMI Immunity, Rail-to-Rail Input, Push-Pull Output CMOS Comparator
SpecializedNJU772122ch. Ultra Low Power, Excellent EMI Immunity, Rail-to-Rail Input, Push-Pull Output CMOS Comparator
SpecializedNJU77220
(Under Development)
1ch. Ultra Low Power, Excellent EMI Immunity, Rail-to-Rail Input, Open-Drain Output CMOS Comparator
SpecializedNJU77222
(Under Development)
2ch. Ultra Low Power, Excellent EMI Immunity, Rail-to-Rail Input, Open-Drain Output CMOS Comparator

Display

LCD Driver

TypesProductFeatures
For PanelR1200PWM Step-up DC/DC Converter for PMOLED and General Use with Shutdown Function
For PanelR1202PWM Step-up DC/DC Converter for White LED/PMOLED and General Use with Shutdown Function
For PanelR1203PWM Step-up DC/DC Converter for White LED
For PanelR1204PWM/VFM Step-up DC/DC Converter for White LED/PMOLED and General Use
For PanelR1205PWM Step-up DC/DC Converter for White LED/PMOLED and General Use
For PanelR1206PWM Step-up DC/DC Converter for White LED
For PanelR1207PWM Step-up DC/DC Converter for White LED/PMOLED and General Use
For PanelR1208PWM Step-up DC/DC Converter for White LED
For PanelR12132.5A PWM Step-up DC/DC Converter
For PanelR1214PWM/VFM Step-up DC/DC Converter for White LED
For PanelR1286PWM Step-up/Inverting DC/DC Converter with Synchronous Rectifier for AMOLED/LCD
For PanelR1287PWM/VFM, Dual-channel Step-up/Inverting DC/DC Converter with Synchronous Rectifier for LCD

Speaker/ Buzzer

Audio-Amp

TypesProductFeatures
Class ABNJU7089High-Power & Low-Voltage Audio Power Amplifier
Class DNJU8759Analog Signal Input Monaural Filter Less 3.0W Class-D Amplifier
Class DNA1150
(Under Development)
Audio Switching Driver with Load Diagnostics
Class DNJU72501Piezo-sounder Driver with Multi-mode charge pump
Class DNJW1280High Capacitance Piezo-sounder Driver with charge pump

Wireless Communication

5G/4G

TypesProductFeatures
LNANT11893.3GHz to 5.0GHz High Linearity Low Noise Amplifier
RF SwitchNJG181710W High Power SPDT Switch
RF SwitchNJG1814High Power SPDT Switch GaAs MMIC
Power AmplifierNJG1330LTE Band 42/43/48 Power Amplifier Module

WiFi/BT

TypesProductFeatures
LNANJG1170Low Noise Amplifier with Bypass for LTE
LNANJG11755GHz Low Noise Amplifier with Bypass function
RF SwitchNJG1806SPDT Switch GaAs MMIC
RF SwitchNJG1815SPDT SWITCH GaAs MMIC
RF SwitchNJG1804SP3T Switch GaAs MMIC
FEMNJG17302.4GHz Band SP3T Switch + LNA GaAs MMIC
FEMNJG17395GHz Band SPDT Switch + LNA GaAs MMIC

LPWA

TypesProductFeatures
RF SwitchNJG1816Ultra Low Current Consumption SPDT Switch
RF SwitchNJG1813DPDT SWITCH GaAs MMIC
SAWNSNJ2014SAW Filter
SAWNSNJ2016SAW Filter
SAWNSNJ2021SAW Filter

GNSS

TypesProductFeatures
LNANJG1155GNSS Low Noise Amplifier GaAs MMIC
LNANJG1187GNSS High Gain Low Noise Amplifier
LNANT1191GNSS Wideband Low Noise Amplifier
LNANT11921.2 GHz band GNSS Low Noise Amplifier
SAWNSNJ9205SAW Filter
SAWNSNJ9208SAW Filter
SAWNSNJ9200ASAW Filter
LNANJG1159GNSS Front-End Module
LNANJG11611.5 GHz band GPS and GLONASS Front-End Module
LNANJG1186GNSS L5/L2C Band Front-End Module
